Subsea Distribution & Accumulation

J+S has 20 years of experience in design, manufacture, repair and replacement of a range of Subsea Control Systems equipment.

This includes electrical, hydraulic and combined systems on both small and large scales.
SUBSEA DISTRIBUTION & ACCUMULATION ASSEMBLIES
Modular Subsea Distribution Solutions.

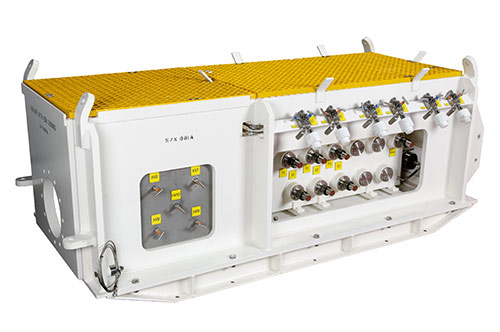

Subsea Distribution Assemblies

J+S has produced a range of Subsea Distribution Assemblies to meet bespoke client requirements for hydraulic, chemical and electrical distribution.

Modular Subsea Distribution Solutions.

Modular design configured for various subsea applications.

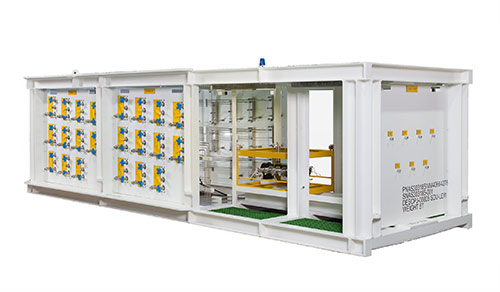

Modular design
J+S has produced a Subsea Distribution Unit (SDU) design that is modular in construction. This approach makes it easier and more cost-effective to reconfigure the unit for different applications, where different numbers of electrical and hydraulic circuits are required.

Individual sub-assemblies can be removed without recovering the compete SDU.

We work closely with our customers

J+S designs, manufactures, tests and supports installation of the SDU including electrical and hydraulic interfaces and jumpers whilst maintaining physical and functional fidelity with previously installed equipment.

We work closely with our customer at each step in the project, to ensure that we deliver the right product at the right time and right price. Where appropriate, instead of re-using inductive couplers, we use subsea matching transformers, designed and manufactured by J+S for this purpose.

Key Features
  • Modular design for re-use in a variety of applications
  • Oil-filled, pressure compensated electrical fuse chamber
  • Two electrical input channels
  • Up to ten electrical outputs per channel
  • Multiple HP and LP hydraulic inputs
  • HP and LP outputs configured to client requirements
  • Mechanical strain relief in excess of 10 tonnes on input umbilicals dependent on umbilical specification.
  • Frame constructed in mild steel with subsea paint finish
  • Independently retrievable EDB
  • Depth rated to 300m
  • Tailored to existing footprint requirements

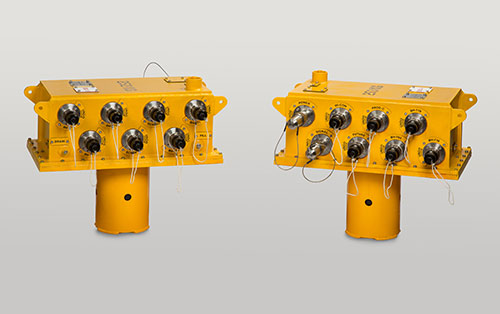

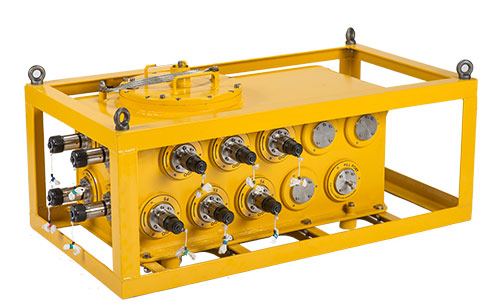

SUBSEA ELECTRICAL DISTRIBUTION UNIT

J+S have designed and delivered a range of bespoke Subsea Electrical Distribution units for use as a junction box within a larger system, Subsea Umbilical Termination or stand-alone plug and play requirements.

Numerous applications

The Electrical Distribution Box can be used in numerous applications and has several interfacing options such as subsea connectors or J+S high integrity penetrator technology.

This provides a versatile interfacing solution for multiple subsea connection points.

Key Features
  • Oil filled pressure balanced housing
  • High integrity polyethylene injection mould penetrator using proven military technology
  • Safety pressure valve to remove potential pressure differentials within the housing
  • Pressure balancing using custom designed piston compensation system
  • Constructed in alloy, 316L stainless steel or titanium for excellent corrosion resistance
  • Qualification tested to depth of 300m
  • Internal splicing using proven polyethylene moulding technique
  • Multiple connection ports (dependent on size of housing)

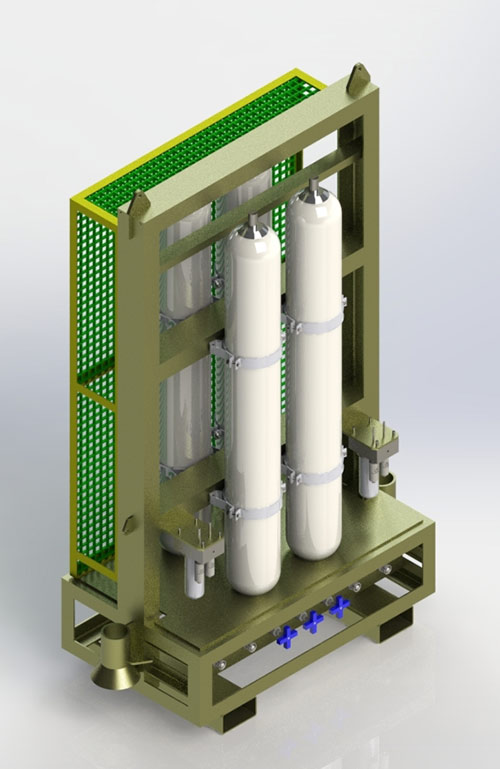

ACCUMULATOR FILTER UNIT

J+S has designed a Subsea Accumulator & Filter Unit (SAFU) in accordance with industry specifications.

Direct interchangeable unit
The Subsea Accumulator & Filter Unit is a direct interchangeable unit to replace current equipment coming to the end of its life. The Subsea Accumulator & Filter Unit has a suitable steel frame with removable covers for ease of assembly, maintenance and testing.
Key Features
  • 4 x 54 litre Subsea Accumulators c/w stainless fittings and mounting brackets
  • Working pressure = 207 bar
  • 2 x 6 micron subsea high pressure filters
  • Earth bonding points and straps
  • Mounting and guide interfaces as per existing units
  • Pressure tested and flushed to SAE AS4059 Class 6f using HW540E control fluid
  • 4 point lifting and sling set
  • Forklift pockets for handling during assembly and storage
  • Protective paint coatings to Norsok M501 (RAL 9003 White)
  • Fibregrid fitted protective covers for dropped object protection
  • Subsea diver operated isolation valves
  • Labels and markings
  • Manufacturing Record Book including all test data and certification
